Define System Analyzer Messages

Use the Analyzer Messages window (accessed within the System Analyzer window) to define which messages to track (example: One-Step Action operations).

Good to know:

• The following message categories are selected by default: Business Object, BusOb Load Timing, Error, One-Step Action, Table Validation Timing, Token Expression Error, and Web Service Call. Messages are not selected by default if they generate a large number of messages or are only applicable for 2-tier or 3-tier systems.
• Click the Clear button to clear all options and click the Select button to select all standard options.

To define which System Analyzer messages to track:

1. Open the System Analyzer.
2. Click the Messages button .

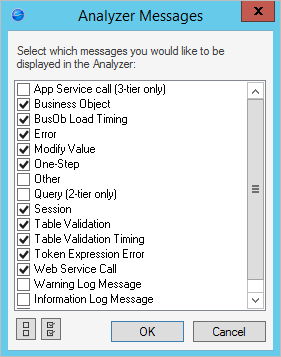

   The Analyzer Messages window opens.



3. Define message categories by selecting or clearing the corresponding check box:

   App Service (3-tier only) Table Validation Business Object Table Validation Timing BusOb Load Timing Token Expression Error Error Web Service Call Modify Value Warning Log Message One-Step Action Information Log Message Other Verbose Log Message Query (2-tier only)

4. Click OK.
