Define System Analyzer Breakpoints

Use the Breakpoints window (accessed within the System Analyzer window) to define breakpoints, which pause CSM when a specific operation is found.

Good to know:

• CSM will not pause for breakpoints unless the System Analyzer is open and running.
• During the pause, you can examine the data to determine if the application is functioning as expected, and then step operation by operation to see what is happening behind-the-scenes.
• Delete all breakpoints from the list by clicking the Delete button .
• Deselect all breakpoints by clicking the Clear button .
• Select all breakpoints by clicking the Select button .
• If a breakpoint is deselected, the System Analyzer will not stop when the breakpoint is encountered during a process. This allows you to save commonly used breakpoints in the Breakpoints window for later use.

To define a System Analyzer breakpoint:

1. Open the System Analyzer.
2. Click the Breakpoints button .

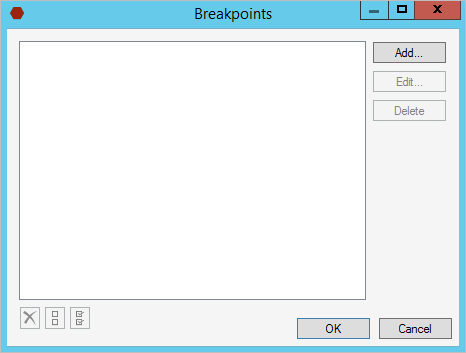

   The Breakpoints window opens.



3. Click the Add button.

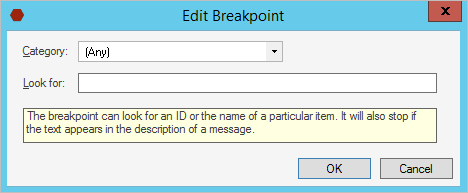

   The Edit Breakpoint window opens.



   Note: Use the Edit button and Delete button to edit and delete existing breakpoints.
4. Define the breakpoint.
   1. Category: In the drop-down, select a category (example: Business Object).

      Tip: To search all categories for the breakpoint, select (Any) in the drop-down.

   2. Look for: Specify text (example: Name, ID, or any other text) to serve as the breakpoint (example: ServiceID).

   3. Click OK.

5. Click OK.
