Use E-mail Address as the Name ID

To use E-mail Address as the Name ID:

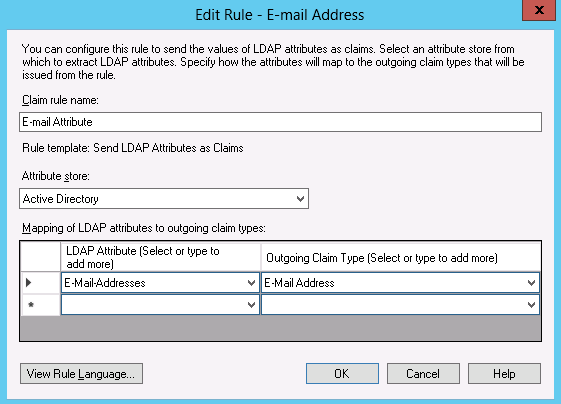

1. For Claim rule template, select Send LDAP Attributes as Claims, and then click Next.



2. Provide a Claim rule name (ex: E-mail Attribute).
3. For Attribute store, select Active Directory.
4. Under Mapping of LDAP attributes to outgoing claim types, select E-mail-Addresses for LDAP Attribute and E-mail Address for Outgoing Claim Type.

5. Click OK.

6. Click Add Rule.

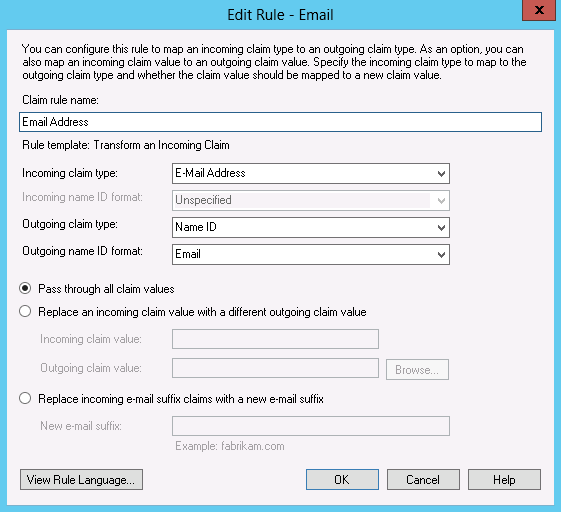

7. For Claim rule template, select Transform an Incoming Claim, and then click Next.



8. Provide a Claim rule name (ex: E-mail Address).
9. Incoming claim type: select E-mail Address.
10. Outgoing claim type: select Name ID.
11. Outgoing name ID format: select Email.
12. Select the Select Pass through all claim values radio button.

13. Click OK.

After completing the above steps, change the following:

1. Under Trust Relationships (left-hand side), select Relying Party Trusts, and then double-click the entry for the CSM Relying Party.
2. Click the Advanced tab.
3. Select the Secure Hash Algorithm specified on the SAML Settings - Service Provider page. SHA-1 and SHA-256 are supported. For details, refer to Configure CSM as a SAML Service Provider.

4. Click OK.
